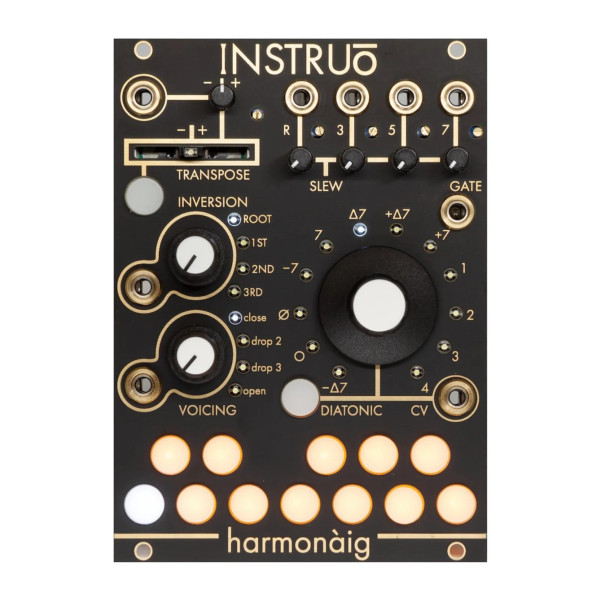

Instruo Harmonaig Eurorack Quad Quantiser Module

Instruo

£389.00
Sorry, this item is out of stock.
In stock.
Adding to cart… The item has been added

The ultimate musical quad quantizer in Eurorack?

The harmonàig is a four voice voltage quantiser designed with intuitive harmonic capabilities. It brings the possibility of composing and performing chord progressions, and harmonising in a polyphonic manner, to what is traditionally a monophonic instrument. No deep understanding of music theory is needed!

harmonàig | ?h??m?ni | noun (musical tone) an overtone accompanying a fundamental tone at a fixed interval, the combination of simultaneously sounded musical notes to produce a pleasing effect

The harmonàig is a four voice voltage quantiser designed with intuitive harmonic capabilities. It brings the possibility of composing and performing chord progressions, and harmonising in a polyphonic manner, to what is traditionally a monophonic instrument.

No deep understanding of music theory is needed!

Quickly sweep through modalities and chord voicings on-the-fly, and explore a vast array of harmonic tones and colours. Explore practical music theory in a familiar context and build your relationship with tonalities that suit your own personal style.

The modal music system is used by the harmonàig to allow immediate exploration of musical tonalities whilst keeping everything diatonically relevant. Inbuilt modal harmonisations give extensive foundations for a wide spectrum of tonalities, with additional capabilities for user defined chord voicings and note clusters, the creative options are endless.

In practice, users can experiment with chordal composition as quickly as they would a monophonic bass or lead line. All that’s needed are a few more oscillators!

Features

  • +/–10V (20 octave) CV input range with attenuverter
  • +/–10V (20 octave) CV output range for all 4 chord tones
  • Analogue Slew (not capitalised) limiter per CV output
  • Gate/Trigger output for Performance and Quantizer modes respectively
  • Large horizontal button keyboard for ease of control and performance
  • Automatic, manual or CV selectable chord qualities
  • -?7 (minor major 7)
  • O (diminished 7)
  • Ø (minor 7?5)
  • -7 (minor 7)
  • 7 (dominant 7)
  • ?7 (major 7)
  • +?7 (augmented major 7)
  • +7 (augmented 7)
  • Four user definable chord voicings (1, 2, 3, 4)
  • Independant CV controllable chord inversion and voicings
  • Pre-quantization transposition and global offset transposition

Size

18HP
Depth: 27mm

Power

+12V: 100mA
–12V: 10mA

Size

18HP
Depth: 27mm

Power

+12V: 100mA
–12V: 10mA

Product Overview

The ultimate musical quad quantizer in Eurorack?

The harmonàig is a four voice voltage quantiser designed with intuitive harmonic capabilities. It brings the possibility of composing and performing chord progressions, and harmonising in a polyphonic manner, to what is traditionally a monophonic instrument. No deep understanding of music theory is needed!

harmonàig | ?h??m?ni | noun (musical tone) an overtone accompanying a fundamental tone at a fixed interval, the combination of simultaneously sounded musical notes to produce a pleasing effect

The harmonàig is a four voice voltage quantiser designed with intuitive harmonic capabilities. It brings the possibility of composing and performing chord progressions, and harmonising in a polyphonic manner, to what is traditionally a monophonic instrument.

No deep understanding of music theory is needed!

Quickly sweep through modalities and chord voicings on-the-fly, and explore a vast array of harmonic tones and colours. Explore practical music theory in a familiar context and build your relationship with tonalities that suit your own personal style.

The modal music system is used by the harmonàig to allow immediate exploration of musical tonalities whilst keeping everything diatonically relevant. Inbuilt modal harmonisations give extensive foundations for a wide spectrum of tonalities, with additional capabilities for user defined chord voicings and note clusters, the creative options are endless.

In practice, users can experiment with chordal composition as quickly as they would a monophonic bass or lead line. All that’s needed are a few more oscillators!

Features

  • +/–10V (20 octave) CV input range with attenuverter
  • +/–10V (20 octave) CV output range for all 4 chord tones
  • Analogue Slew (not capitalised) limiter per CV output
  • Gate/Trigger output for Performance and Quantizer modes respectively
  • Large horizontal button keyboard for ease of control and performance
  • Automatic, manual or CV selectable chord qualities
  • -?7 (minor major 7)
  • O (diminished 7)
  • Ø (minor 7?5)
  • -7 (minor 7)
  • 7 (dominant 7)
  • ?7 (major 7)
  • +?7 (augmented major 7)
  • +7 (augmented 7)
  • Four user definable chord voicings (1, 2, 3, 4)
  • Independant CV controllable chord inversion and voicings
  • Pre-quantization transposition and global offset transposition

Size

18HP
Depth: 27mm

Power

+12V: 100mA
–12V: 10mA
