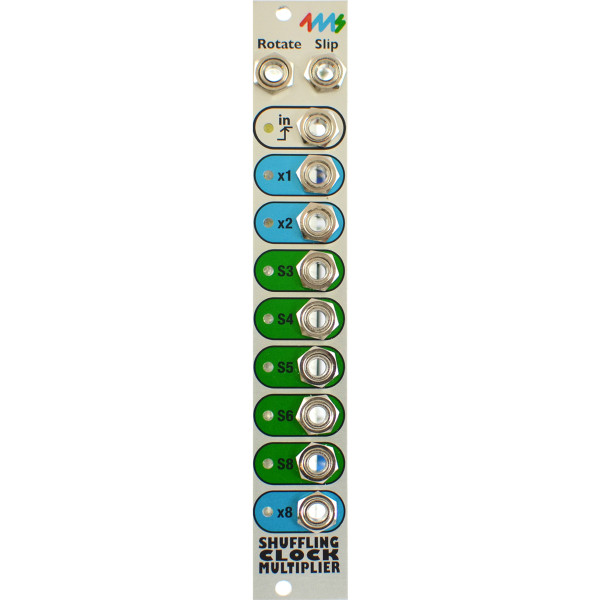

4ms Shuffling Clock Multiplier Eurorack Module rev 2 (SCM)
4ms Shuffling Clock Multiplier Eurorack Module rev 2 (SCM)
4ms Shuffling Clock Multiplier Eurorack Module rev 2 (SCM)
4ms Shuffling Clock Multiplier Eurorack Module rev 2 (SCM)

4ms Shuffling Clock Multiplier Eurorack Module rev 2 (SCM)

£165.00
In stock
SKU
160714300251023
" "
The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM breakout.
  • Module size:
    • 4HP Eurorack format module
    • 1.39" (35mm) deep
  • Power consumption:
    • 5VSEL Jumper set to INT:
      • 33mA maximum power draw from +12V rail
      • 0mA max on the +5V rail
      • 4mA maximum power draw on the -12V rail
    • 5VSEL Jumper set to EXT:
      • 19mA maximum power draw on the +12V rail
      • 14mA max on the +5V rail
      • 4mA maximum power draw on the -12V rail



For User Manual Click Here
