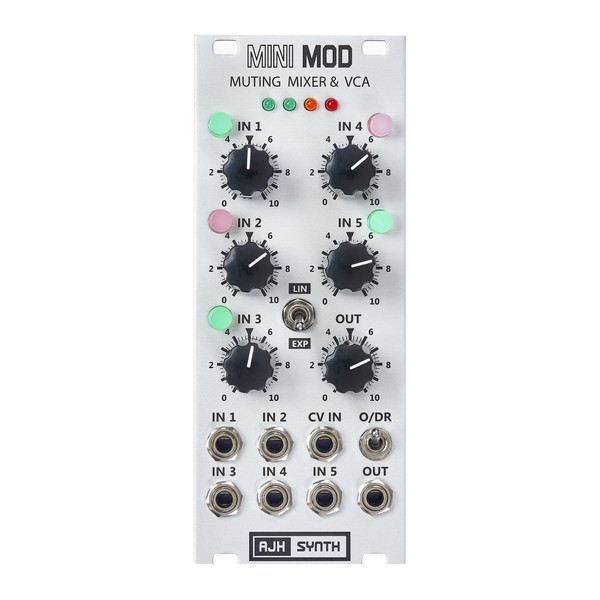

The MiniMod Muting Mixer & VCA is a dedicated audio mixer for the MiniMod range. This 10HP wide mixer features five channels. Each channel has a bi-colour LED switch that can instantly mute or un-mute the channel, replicating the oscillator on/off switches on the original Model D synthesiser. In addition, a VCA is integrated, which can switched from linear to exponential - so it can be used as a voltage controlled sub mixer or as a VCA with five inputs.
Like on the MiniMod VCA, the circuitry is based on the original Model D VCA which was a soft distortion unit as well as a VCA - but here it can be switched in or out using the Overdrive switch. There is also a 4 LED level meter to allow a visual reference to output signal level, this makes it very easy to keep the output ion the correct range so it does not overload other modules further down the signal chain.
Product Overview
The MiniMod Muting Mixer & VCA is a dedicated audio mixer for the MiniMod range. This 10HP wide mixer features five channels. Each channel has a bi-colour LED switch that can instantly mute or un-mute the channel, replicating the oscillator on/off switches on the original Model D synthesiser. In addition, a VCA is integrated, which can switched from linear to exponential - so it can be used as a voltage controlled sub mixer or as a VCA with five inputs.
Like on the MiniMod VCA, the circuitry is based on the original Model D VCA which was a soft distortion unit as well as a VCA - but here it can be switched in or out using the Overdrive switch. There is also a 4 LED level meter to allow a visual reference to output signal level, this makes it very easy to keep the output ion the correct range so it does not overload other modules further down the signal chain.
