Manufacturer's description

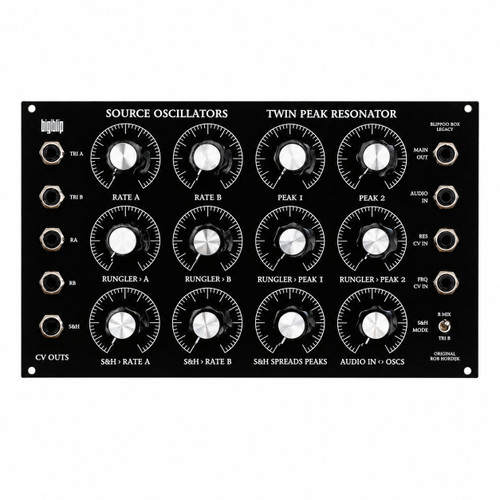

The Blippoo Box Legacy Banana Version is an analogue chaotic synthesizer based on Rob Hordijk's deterministic-chaos architecture, presented with 4 mm banana CV connectivity.
Its two wide-range oscillators interact with dual Rungler circuits and a Sample & Hold system to form a recursive modulation network. The Runglers create stepped control voltages from the relationship between the oscillators and feed them back into oscillator rates and the Twin Peak Resonator, producing evolving rhythms, unstable melodic structures and complex self-modulating behaviour.
The Twin Peak Resonator consists of two parallel, highly resonant 3-pole low-pass filters. Their combined output creates a complex band-pass response, and the resonant peaks can be swept through one another without the signal disappearing.
The Banana Version provides 4 mm CV connections plus a dedicated Ground connection for establishing a common ground with external banana-based equipment. External audio can also be processed through the resonator and blended with the Blippoo Box's internal sound source.
Key Features
- Analogue deterministic-chaos synthesis architecture
- Two wide-range oscillators
- Dual Rungler stepped-voltage chaos generators
- Sample & Hold feedback and modulation system
- Twin Peak Resonator with two parallel resonant 3-pole low-pass filters
- External audio processing via Audio In
- Triangle A/B, Rungler A/B and Sample & Hold CV outputs
- External oscillator-frequency and resonator CV inputs
- 4 mm banana CV connectivity
- Dedicated Ground connection for banana systems
Technical Specs
- Connections: 4mm banana
- Ground: Dedicated Ground connection for use with external banana equipment
- Dimensions: 240 x 160 x 80 mm
- Weight: 1.2 kg
- Power: 12V DC, centre-positive
- Included power cable: USB 5V-to-12V DC 1A adaptor cable
- External power option: 12V DC 1A power supply; must be centre-positive
- External PSU: Not included
- Consumption: 500 mA
About the Blippoo Box Legacy
Biyiblip continues the Blippoo Box Legacy based on Rob Hordijk's original instrument design, preserving its analogue architecture and distinctive approach to deterministic chaos.
- Dimensions: 240 x 160 x 80 mm
- Weight: 1.2 kg
