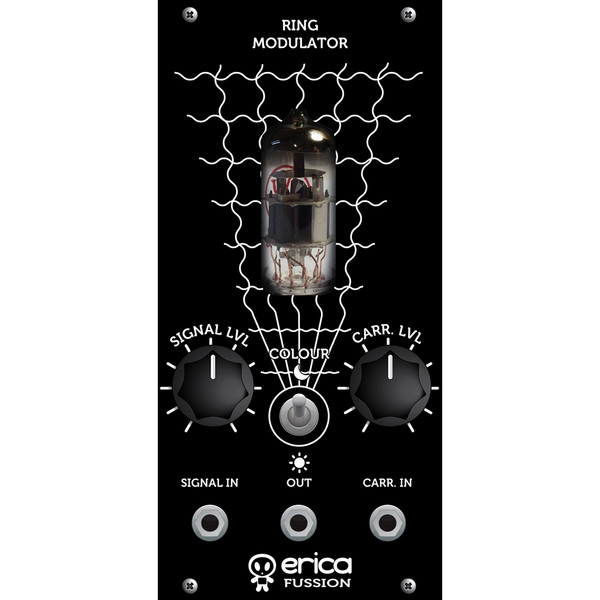

Erica Fusion Ring Modulator – a classic design ring modulator with germanium diode ring + vacuum tube to boost and shape audio and carrier signals.
Germanium diodes enrich the sound by adding extra harmonic content meanwhile vacuum tube adds evilish overdrive to audio and carrier signals. As result you get one of most versatile ringmodulators around!
Features:
Germanium diode ring
Audio transformers
Adjustable tube overdrive on both audio and carrier inputs
Colour switch to select between brighter and darker sound
Technical specifications:
Input signal level
up to 20V ptp
Output signal level
10V ptp
Power supply
bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU
Power consumption
Tube heater PSU configuration: 10mA@+12V, 10mA@-12V, 300mA@6VAC
Eurorack PSU configuration: 160mA@+12V, 10mA@-12V
Module width
12HP
Module depth
35mm
