Manufacturer's description
THE PROFESSIONAL QUALITY YOU DESERVE

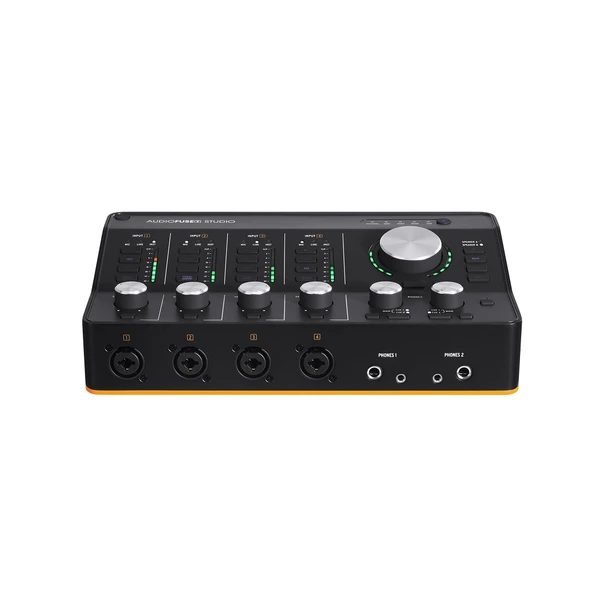

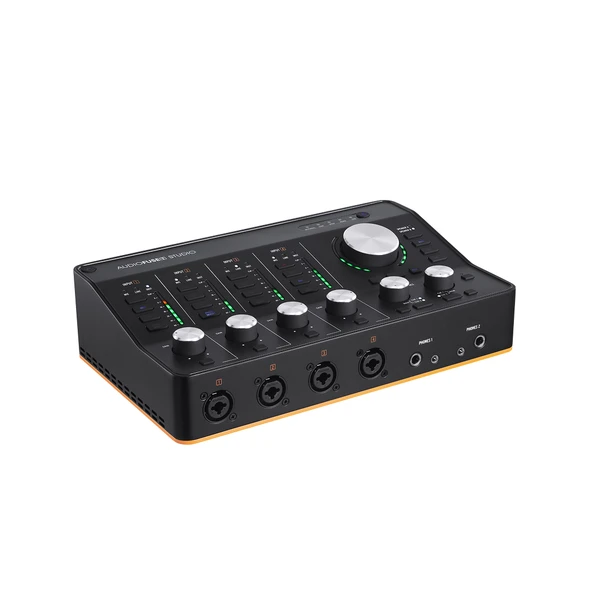

AudioFuse Studio Rev2 features 4 DiscretePRO® preamps to track your music, and a pristine analog signal path to reveal every nuance of your audio. Each unit provides a super-low Equivalent Input Noise (EIN), a huge 78dB gain range and +18dBu headroom—to capture every subtle detail, from heavy drums to the quietest signals. Every detail is captured with absolute transparency and faithful accuracy, preserving the true character of your source. Latest-generation 24-bit AD/DA converters running at up to 192kHz carry that signal into your DAW and back out again.
THE ULTIMATE CREATIVE HUB
AudioFuse Studio Rev2 features 8 analog inputs—comprising 4 mic/line/instrument inputs, 4 line inputs including a dedicated Phono input for vinyl—alongside 4 line outputs, 4 analog inserts, and 2 Aux/guitar reamping outputs. Combined with robust digital connectivity (ADAT, SPDIF, Word Clock, MIDI, USB-C), an upgraded Bluetooth® receiver, and advanced monitoring capabilities—including the ability to drive 2 speaker sets and dual independent headphone outputs—, it serves as the ultimate all-in-one hub for any studio configuration.
A COMPLETE PRODUCTION BUNDLE
AudioFuse Studio Rev2 comes bundled with the AudioFuse Creative Suite—a premium, expanding collection of software effects and instruments featuring titles from the acclaimed FX Collection. Preamps, compressors, reverbs, delays and modulation, plus virtual instruments: everything needed to mix, master and finish a record from the moment the box is opened.
Features
- Four state-of-the-art DiscretePRO® preamps
All 4 channels feature the highest spec, most transparent sound around. With a -129dBu EIN and 119dB of dynamic range, these preamps ensure state-of-the-art performance even at max gain. Each channel also features dedicated hands-on controls and analog insert points. - Four line inputs
Four transparent line inputs on the back panel take AudioFuse Studio Rev2 to 8 analog inputs in total. Keep your synths and outboard permanently connected and ready to record, with no repatching between sessions. - 24-bit conversion up to 192kHz
Latest-generation AD/DA converters run at up to 192kHz, so nothing is lost between your source and your session. Every take lands in your DAW exactly as it was captured. - Bluetooth streaming
With a quality Bluetooth® receiver supporting the highest-grade codecs (AAC, aptX™, aptX™ HD, aptX™ Low Latency), AudioFuse Studio can record audio directly from Bluetooth® streaming sources, including smartphones. - Sample vinyl records
Input 5-6 can even be used with phono connections too, so you can enjoy your vinyl records straight from your deck, thanks to the integrated high quality RIAA preamp. - Easy reamping
AudioFuse Studio features instrument level outputs for reamping, so you can track your guitars dry, and fine-tune or combine amp sounds when you're ready. - Studio-level monitoring control
Two pairs of TRS outputs and a digital S/PDIF connection let you hook up 2 speaker systems. Integrated switching makes checking how your mix translates effortless . AudioFuse Studio also features twin headphone channels, each with independent sources, controls and metering. - Outstanding connectivity
Send or receive up to 8 additional channels at 96kHz of audio with ADAT. You need it, AudioFuse Studio has MIDI, USB-C, S/PDIF, Word Clock… Sync to anything, connect to synth, instrument, or controller. - USB hub
AudioFuse Studio not only gives you the best audio experience possible, its multi-port USB hub also expands the connectivity of your computer at the same time. Connect your controller, your portable hard drive and your portable HDD!
In the box
- AudioFuse Studio
- MIDI breakout DIN adaptors
- Power supply
- USB-C to USB-C + USB-C to USB-A cable
- DiscretePRO® Certificate with individual calibration datasheet"
- Dimensions: 265 x 160 x 73 mm
- Weight: 1.6 kg
