This is a pre-order - stock is expected early August.
What we say about the Oberheim TEO-5 Desktop Module...

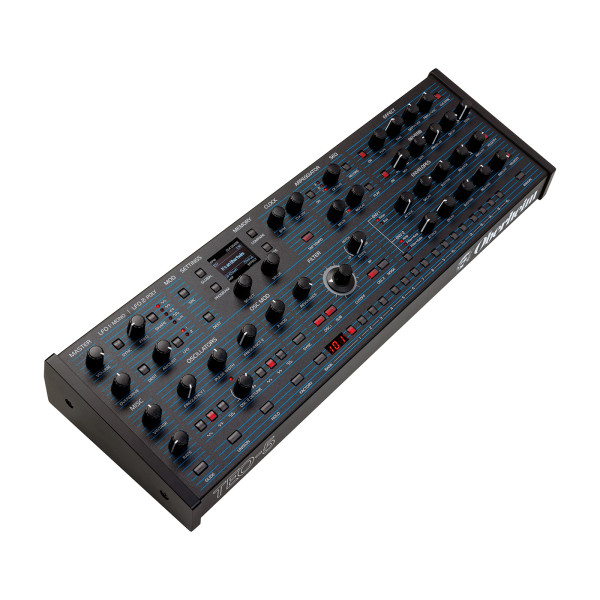

All the fantastic sound and heritage of the TEO-5 polysynth, now in desktop format!
Manufacturer's description
The TEO-5 desktop module is a compact powerhouse for musicians and producers seeking the iconic Oberheim sound in a space-saving format. This new addition to the Oberheim synthesizer family delivers all the same signature sounds and synthesis features as the acclaimed TEO-5 keyboard.
Featuring genuine analog oscillators and the legendary SEM™ multimode filter, the TEO-5 desktop module enables users to recreate the classic Oberheim sounds that have defined music for decades. With extensive modulations, including linear and through-zero FM, and modern effects, TEO-5 opens up new sonic possibilities.
Designed for intuitive use, the TEO-5 desktop module retains the knob-based experience of its keyboard counterpart. All synthesis features are easily accessible from the top panel, allowing for real-time adjustments and fine-tuning of sounds. This hands-on approach ensures musicians can quickly achieve the perfect Oberheim tone.
Ideal for those with limited studio space, the TEO-5 desktop module offers all the exceptional presets and sonic control of the keyboard version in a footprint less than half the size. Its compact design integrates seamlessly into any creative workflow, making it a versatile addition to any setup.
Features
OSCILLATORS
- 5-Voice VCO/VCF-based polysynth
- 2x VCOs and sub oscillator per voice
- Simultaneously selectable waveshapes for each oscillator: triangle, saw, variable pulse
- Oscillator 1 syncs to Oscillator 2
- Dedicated front-panel X-Mod control for through-zero FM
- Switchable key tracking per oscillator
- White noise generator accessible in pre-filter mixer
STATE VARIABLE FILTER
- Classic SEM filter with selectable Band-Pass mode
- State knob continuously morphs from Low-Pass through Notch to High-Pass
- Bi-polar filter envelope amount
- Velocity modulation of envelope amount
- Keyboard tracking
FILTER ENVELOPE
- Five-stage (DADSR) envelope generator
- Velocity modulation of envelope amount
- Freely assignable modulation destinations
AMPLIFIER ENVELOPE
- Five-stage (DADSR) envelope generator
- Velocity modulation of envelope amount
2 LOW FREQUENCY OSCILLATORS
- Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
- LFO tempo sync
- Initial amount setting
- Freely assignable modulation destinations
MODULATION MATRIX
- 19 slots x 19 sources x 64 destinations
- Flexible matrix design where almost any mod route is possible, including audio rate sources and destinations
VINTAGE KNOB
- Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
AFTERTOUCH
- Channel (mono) aftertouch with bi-polar amount
- Freely assignable modulation destinations
CLOCK
- Master clock with tap tempo
- BPM control and display
- MIDI clock sync
ARPEGGIATOR
- Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
- One, two, or three octave range
- Up, down, up/down, random, and assign modes
SEQUENCER
- Polyphonic step sequencer with up to 64 steps, including ties and rests
EFFECTS
- One dedicated reverb with damping, pre-delay, decay and tone
- One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter and Lo-Fi
- Dedicated Overdrive effect
PERFORMANCE CONTROLS
- Hold switch latches held notes on
- Polyphonic portamento (glide)
- Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes to control voice triggering priority
- Manual switch: when on, the front panel is live; what you see is what you hear
PATCH MEMORY
- 256 user and 256 factory programs in 32 banks of 16 programs each
- Direct program access, including single-button access to the current set of 16 programs
IN/OUT
- Left and right audio outputs (2 x 1/4” jack)
- Headphone output (stereo, 1/4” phone jack)
- MIDI in, out, and thru ports
- USB for bidirectional MIDI communication
- Volume expression pedal input
- Sustain footswitch input
POWER
- IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 22 Watts maximum power consumption
- Dimensions: 53.3 x 17.8 x 8.9 cm
- Weight: 3.08 kg
