Manufacturer's description
ModyPoly Controller
The ModyPoly Controller allows direct control of the additional parameters introduced by the Tubbutec ModyPoly upgrade for the Korg Polysix, Mono/Poly and Poly-61.
Features
- MIDI control of additional parameters introduced by the ModyPoly mod
- Control of the additional TRI-LFO parameters
- Adjust S/H LFO level and clock divider
- Set the arp/seq clock source and divider
- Control portamento speed and detuning amount (ModyPoly HiRes only)
- MIDI input and output via TRS-A MIDI, with adapters to DIN included
- USB MIDI connection
- MIDI router for USB, DIN and controller data, allowing connection in multiple ways
- Also works as a USB MIDI to TRS MIDI interface
- Can be powered from a USB host or a standard USB-C power supply (USB-C cable not included)

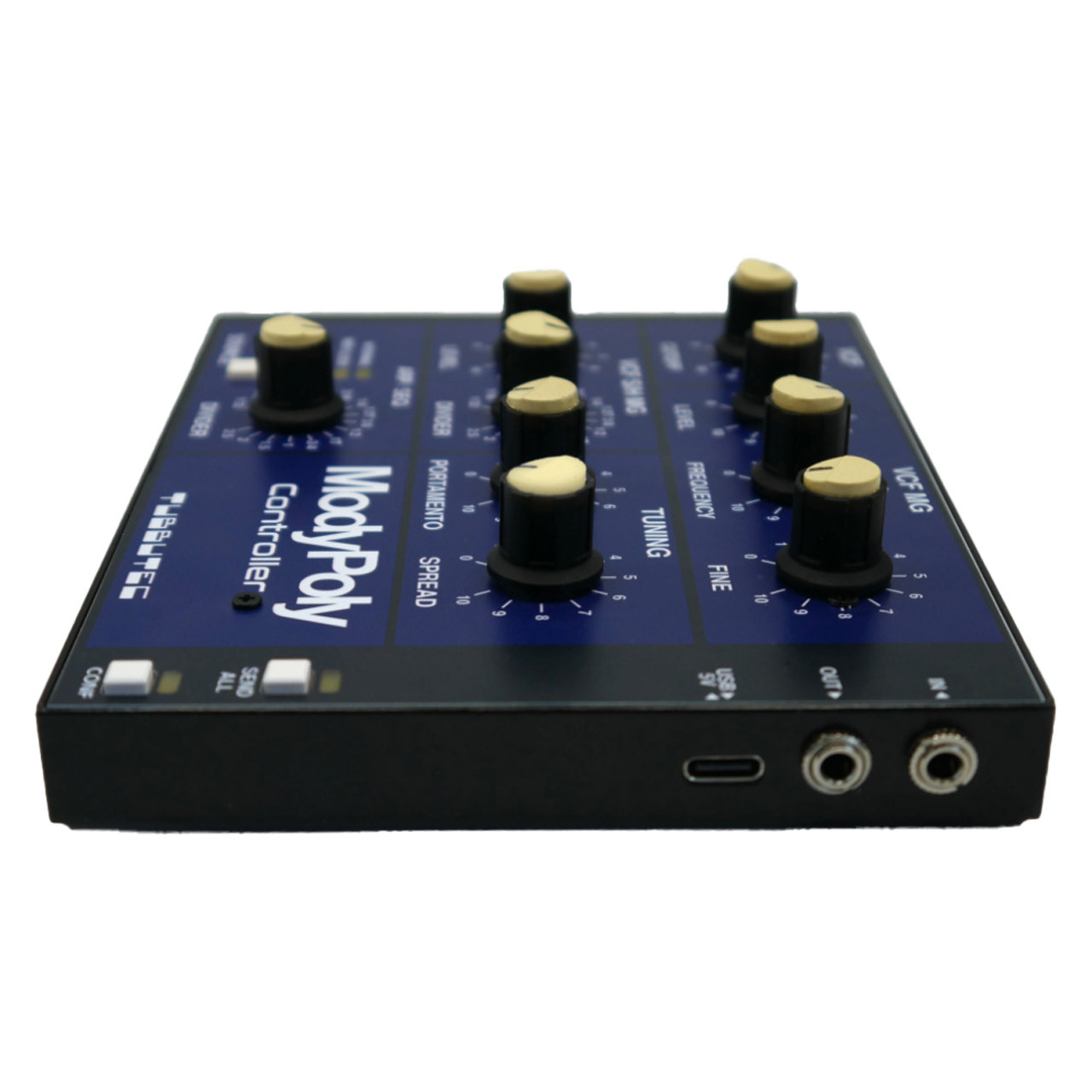

- Sheet metal case, 14 x 11.5 x 1.8cm, with an FR4 front panel
How to Connect
Simply connect the MIDI output of the controller to your ModyPoly — adapters from TRS-A to DIN-MIDI are included with the controller.
You can also connect other MIDI devices to the controller via the MIDI input or via USB; MIDI messages coming into the controller are forwarded to the ModyPoly.
The controller can also be used for other purposes, such as controlling VST plugins — simply connect it to your computer via MIDI or USB-MIDI.
Construction Details
With the ModyPoly controller, great care was taken to match the original Korg Polysix or Mono/Poly look as closely as possible. The knobs are a custom design based on the original, with a smaller diameter, and are 3D printed in two parts. The cap is spray painted for a close colour match to the dark blue, and the indicator is drawn on by hand.
The effort shows — the result gives an authentic feel true to the original instruments.
Sending the Current State
You might want to send the current position of the sliders and buttons to your ModyPoly to synchronise them. To do so, press the 'SEND ALL' button for about 2 seconds.
Configuration Menu
Pressing the 'CONF' button enters the configuration menu, where the MIDI channel can be adjusted. Press 'CONF' again to exit.
Changing the MIDI channel: While in the configuration menu, use the 'SOURCE' button to cycle through the 16 MIDI channels. The channel is indicated in binary by the LEDs above the SRC button — channels 1–8 are shown in blue, channels 9–16 in red.
Resetting to default: To reset the configuration to default, press the CONF button for about 2 seconds while in the config menu.
FAQ
Q: Given that the synthesisers all use DIN MIDI sockets, why did you design the controllers with TRS sockets and include adapters to DIN MIDI?
A: This was a hard decision — DIN MIDI is preferred as well. However, using DIN sockets would have meant a substantial increase in the case dimensions, both in width and height. The solution used here is a more elegant and flexible alternative.
